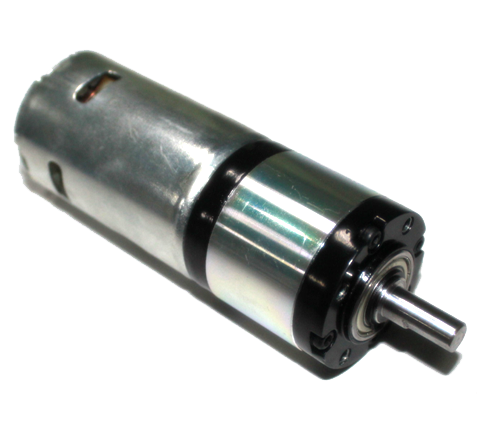

SPM42K-775 行星减速电机
典型应用:
1）医疗器械/ 个人护理产品/电动工具/办公设备
2) 安防产品/银行设备/自动化设备/智能家居产品

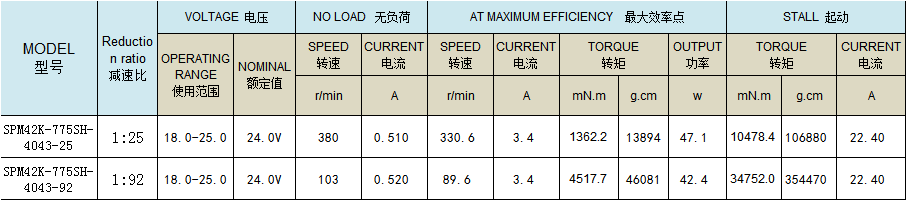

Planetary geared motors feature examples/行星减速电机特性示例:
* Other parameters: according to customer demand for design/其他参数：根据客户的需求设计.

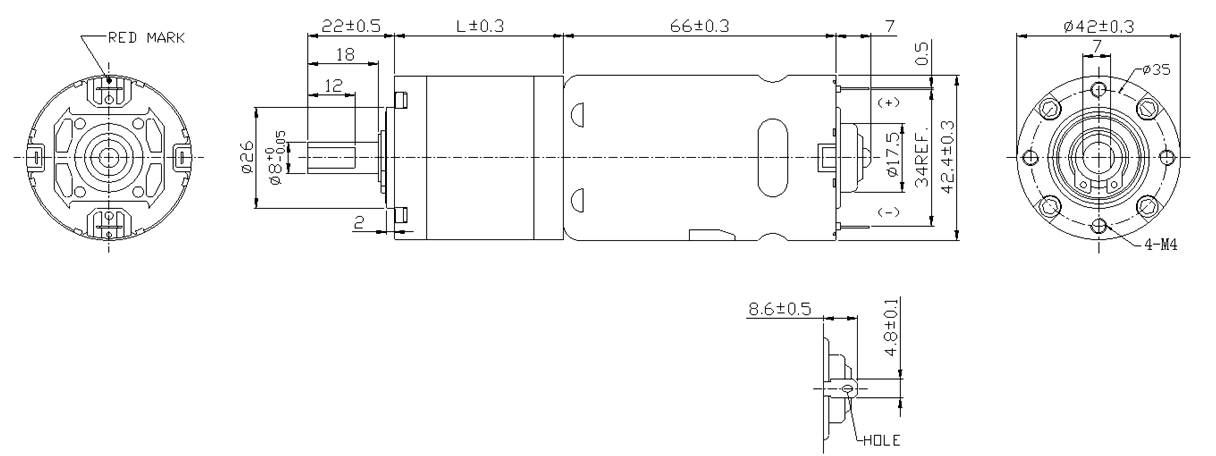

Appearance Size/外形尺寸 Unit: mm/单位:毫米
| * Note: planetary gearboxes/备注:行星减速箱 * | |||||||||||||
| Planetary gearbox reduction ratio, rated torque sufficient promise, box length/行星减速箱减速比,额定充许扭力,箱体长度: | |||||||||||||
| Reduction Ratio 减速比 | 1:3.7 | 1:5 | 1:13 | 1:18 | 1:25 | 1;49 | 1:67 | 1:92 | 1:125 | 1:181 | 1:246 | 1:336 | |
| L | 33.5 | 43.5 | 53.5 | 63.5 | |||||||||
| Rated maximum allowable torque (KgNaN) 额定允许最大扭力(KgNaN) | 8 | 8 | 15 | 15 | 15 | 25 | 30 | 40 | 40 | 50 | 50 | 50 | |
| Reduction Ratio 减速比 | 1:458 | 1:625 | / | / | / | / | / | / | / | / | / | / | |
| L | 63.5 | / | / | / | / | / | / | / | / | / | / | ||
| Rated maximum allowable torque (KgNaN) 额定允许最大扭力(KgNaN) | 50 | 50 | / | / | / | / | / | / | / | / | / | / | |
